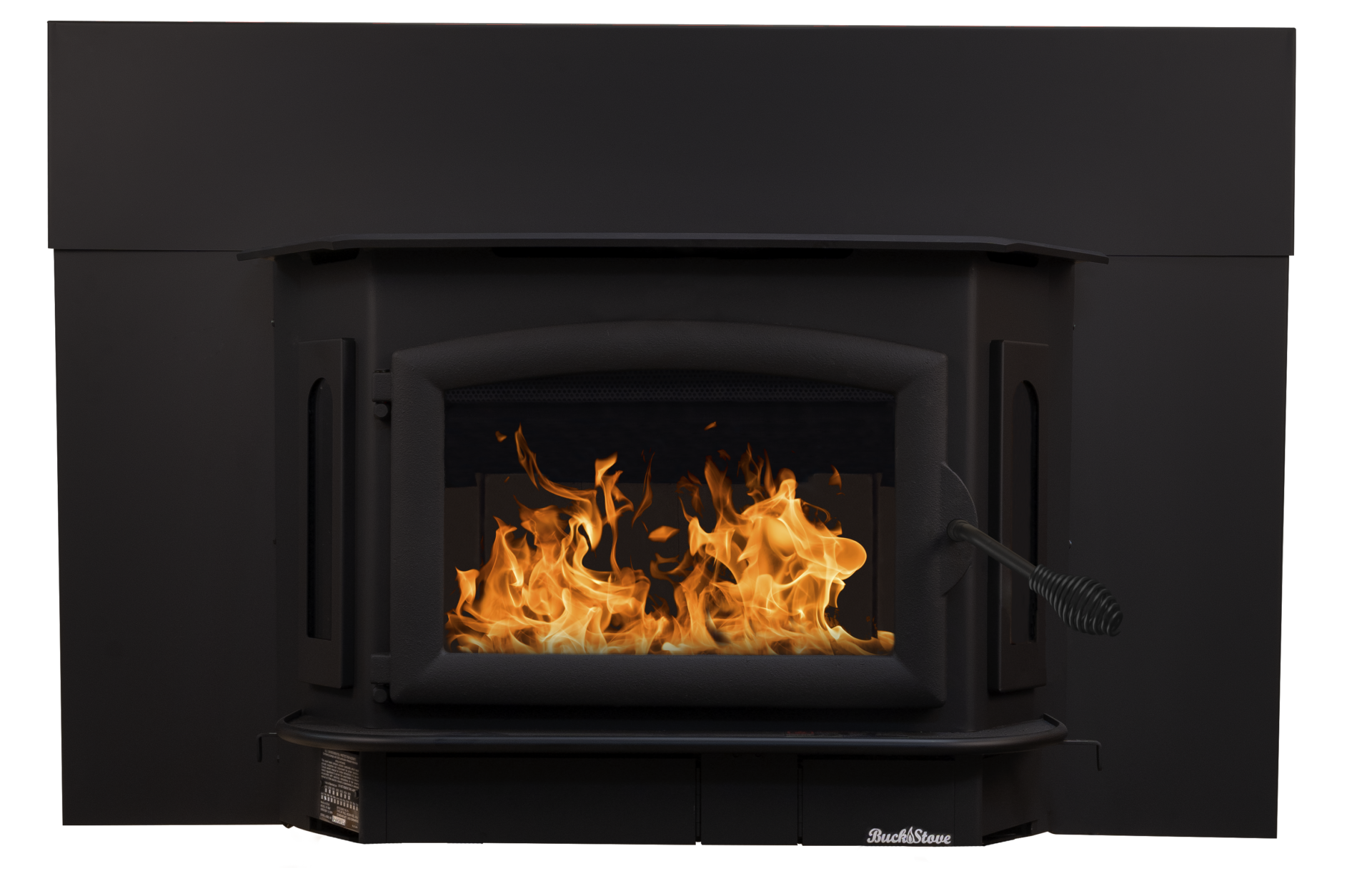

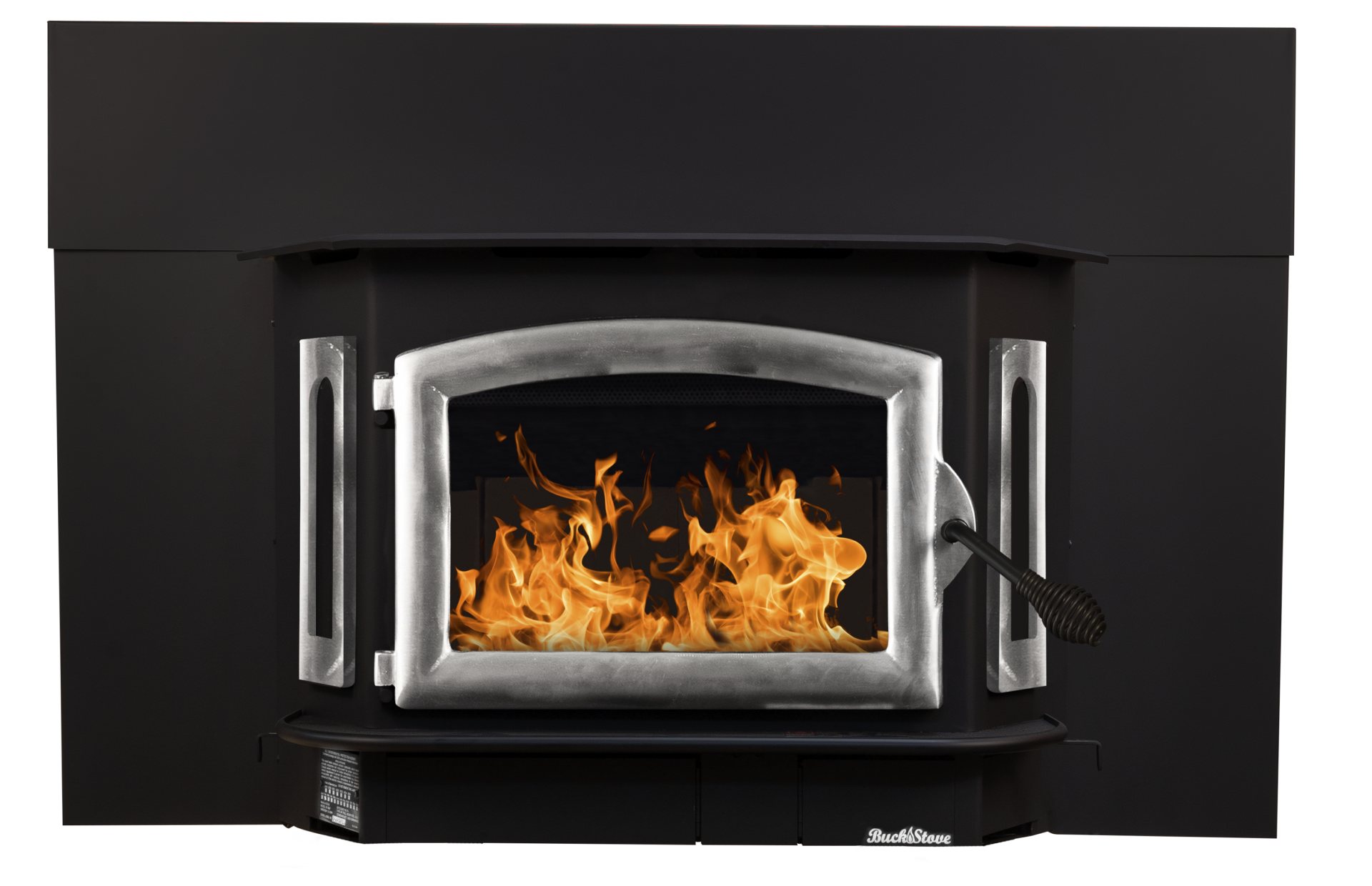

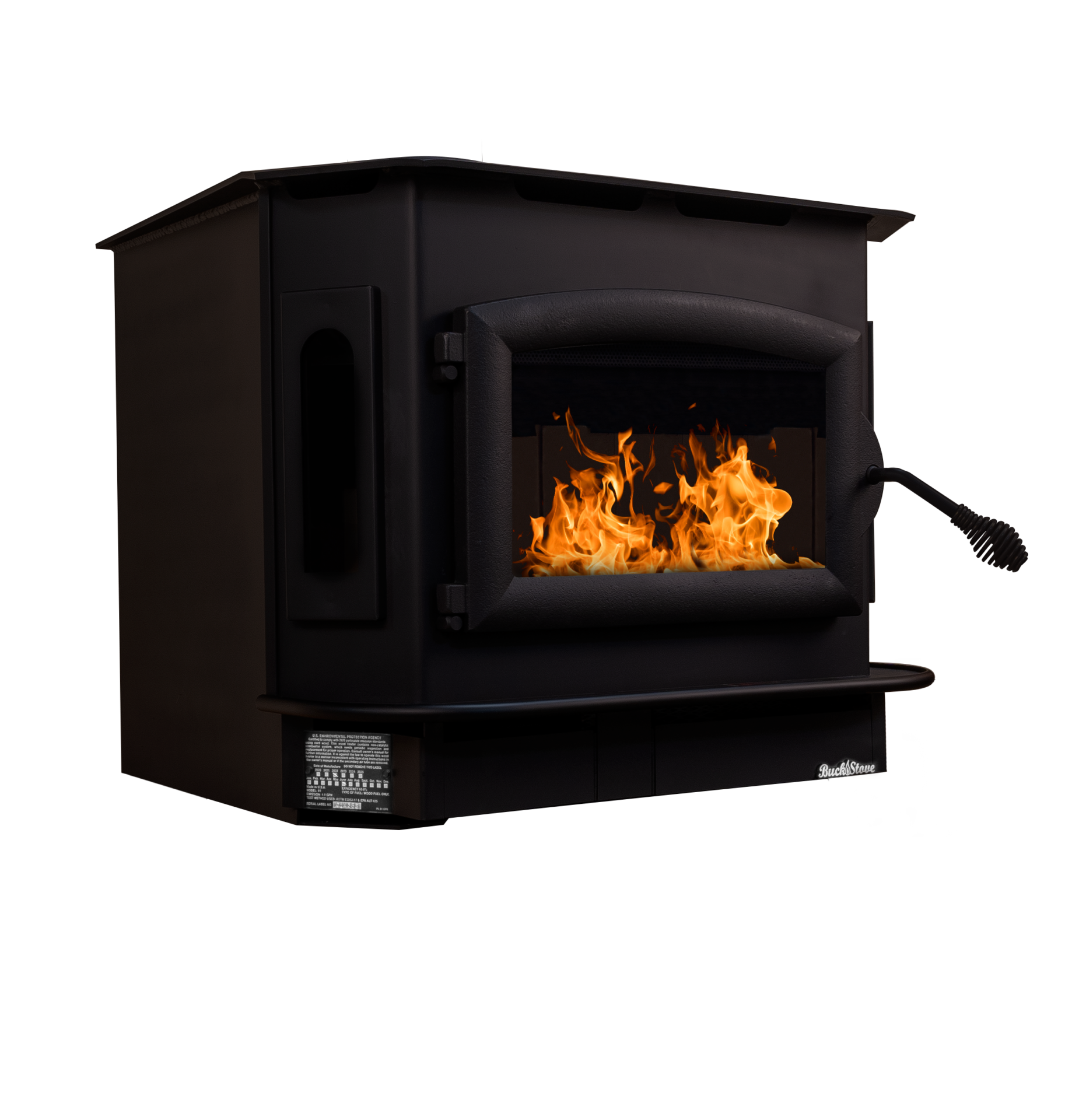

Model 81

STOVE DIMENSIONS:

23-7/16" H X 30-1/4" W X 25-3/4" D

STOVE WEIGHT: 460 Lbs

CUBIC FEET FIREBOX VOLUME: 2.4

FIREWOOD LENGTH:

20" (front to back) 18" (side to side)

ASHPAN: YES

MINIMUM FIREPLACE DIMENSIONS:

23-3/4" H X 29" W X 14" D

BLOWER: YES

FLU SIZE: 6"

EFFICIENCY: 78%

HEARTH PAD SIZE: 33" W x 48" D**

HEAT CAPACITY: 1,600 - 2,700 Sq. Feet

EPA Tested Output BTU/H: 45,400

EMISSIONS G/H: 4.3

OPTIONAL PEDESTAL: YES (10"H)

PRE-FAB APPROVED: YES

MOBILE HOME APPROVED: YES++

 **Hearth pad size listed is the minimum size required for vertical vent installations

++Requires optional outside air pedestal and/or outside air kit for mobile home installations

Model 81 Manual
